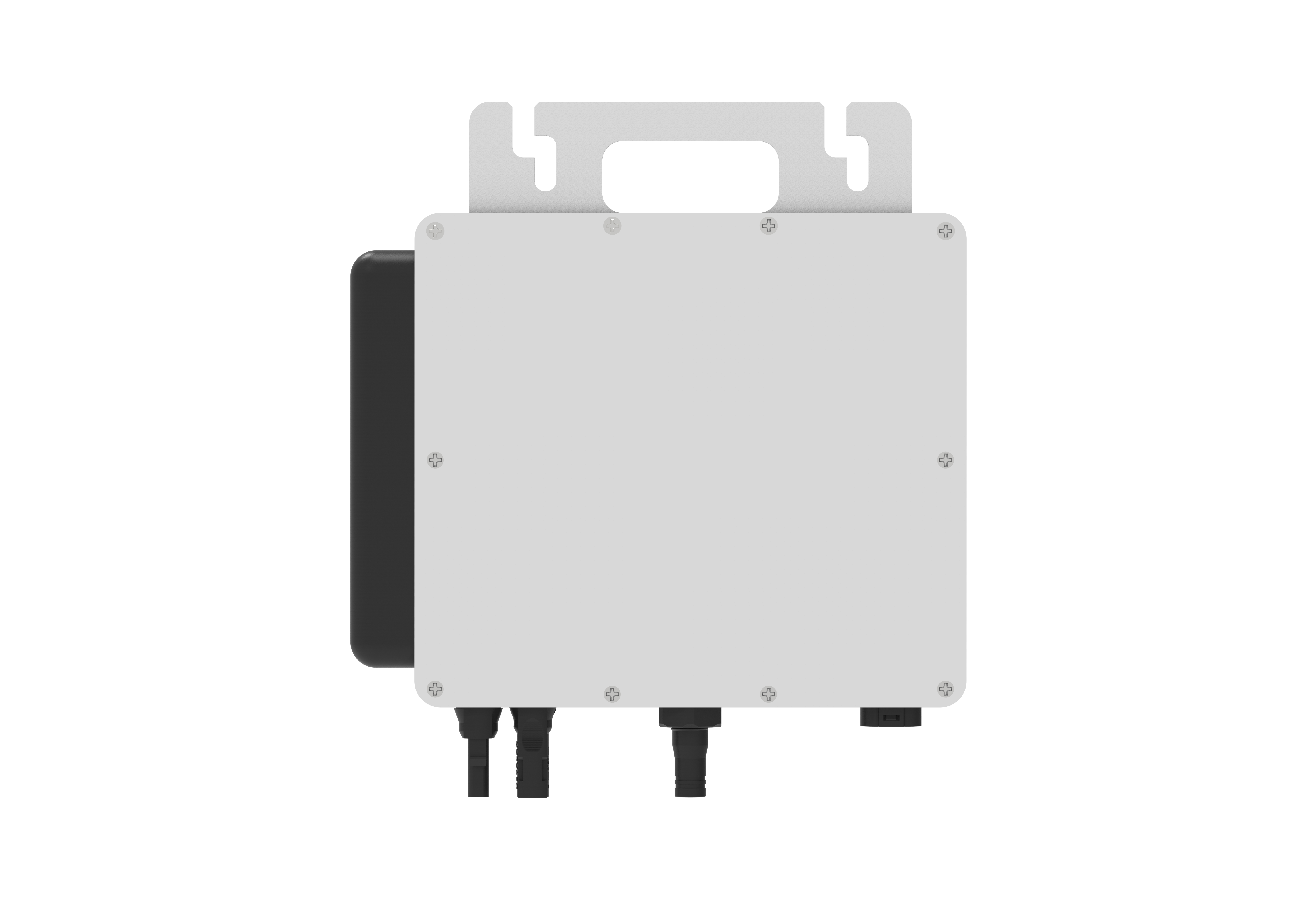

SUN-D60/80/100/110G4-EU-Q0

Micro Inverter | 600-1100W | Single Phase | 2 MPPT

1 MPP tracker, module level monitoring
IP67 protection degree
Wi-Fi communication and lora communication
Rapid shutdown function
Easy installation, suitable for quick-plug balcony PV system
<100ms AC fast discharge, compliant with new required standard DIN VDE V 0126-95 (<200ms) to protect human safety
Complete NS protection with self-check function
25 years design lifetime and 15 years warranty
With integrate Wi-Fi
Anti backﬂow function

DOWNLOAD AREA

>> Download Datasheet <<

Technical Specifications

SUN-D60G4-EU-Q0
SUN-D80G4-EU-Q0
SUN-D100G4-EU-Q0
SUN-D110G4-EU-Q0
Feedback

Model	SUN-D60G4-EU-Q0	SUN-D80G4-EU-Q0	SUN-D100G4-EU-Q0	SUN-D110G4-EU-Q0
PV String Input Data
Max. PV Input Power(W)	210-420(2 Pieces)	210-560(2 Pieces)	210-700(2 Pieces)	210-770(2 Pieces)
Max. PV Input Voltage(V)	120
Start-up Voltage(V)	20
MPPT voltage range(V)	45-100
Rated PV Input voltage(V)	85
Max. Input Short-Circuit Current (A)	27
Max. Operating PV Input Current(A)	18
No. of MPP Trackers/No. of String per MPP Tracker	1/1
AC Output Side
Rated AC Output Active Power(W)	600	800	1000	1100
Max.AC Output Apparent Power(VA)	600	800	1000	1100
Rated AC output current (A)	2.8/2.7	3.7/3.5	4.6/4.4	5/4.8
Max.AC Output Current(A)	2.8/2.7	3.7/3.5	4.6/4.4	5/4.8
Rated output voltage/range (V)	220/230 0.85Un-1.1Un
Grid Connection Form	L/N/PE
Rated Output Grid Frequency/range(Hz)	50/45-55, 60/55-65
Power Factor Adjustment Range	0.9 leading to 0.9lagging
Total Current Harmonic Distortion THDi	<3%
DC Injection Current	<0.5%ln
Efficiency
Max. Efficiency	96.50%
Euro Efficiency	96.00%
MPPT Efficiency	>99%
Equipment Protection
DC Reverse Polarity Protection	YES
AC Output Overcurrent Protection	YES
AC Output Overvoltage Protection	YES
AC Output Short Circuit Protection	YES
Thermal Protection	YES
Insulation Impedance Detection	YES
Anti-islanding Protection	YES
Surge Protection Level	TYPE II(AC)
Interface
Communication Interface	WiFi
General Data
Operating Temperature Range (°C)	-40 to -65℃
Permissible Ambient Humidity	0~100%
Permissible Altitude (m)	2000m
Noise (dB)	≤ 25
Ingress Protection(IP) Rating	IP 67
Inverter Topology	Isolated
Over Voltage Category	OVC II(DC),OVC III(AC)
Cabinet Size（WHD）[mm]	21219040（Excluding connectors and brackets）
Weight [kg]	2.7
Warranty [year]	15 Years
Type Of Cooling	natural cooling
Grid Regulation	IEC 61727,IEC 62116,CEI 0-21,EN 50549，NRS 097,RD 140,UNE 217002, G98,VDE-AR-N 4105
Safety EMC/Standard	IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
