| Model |

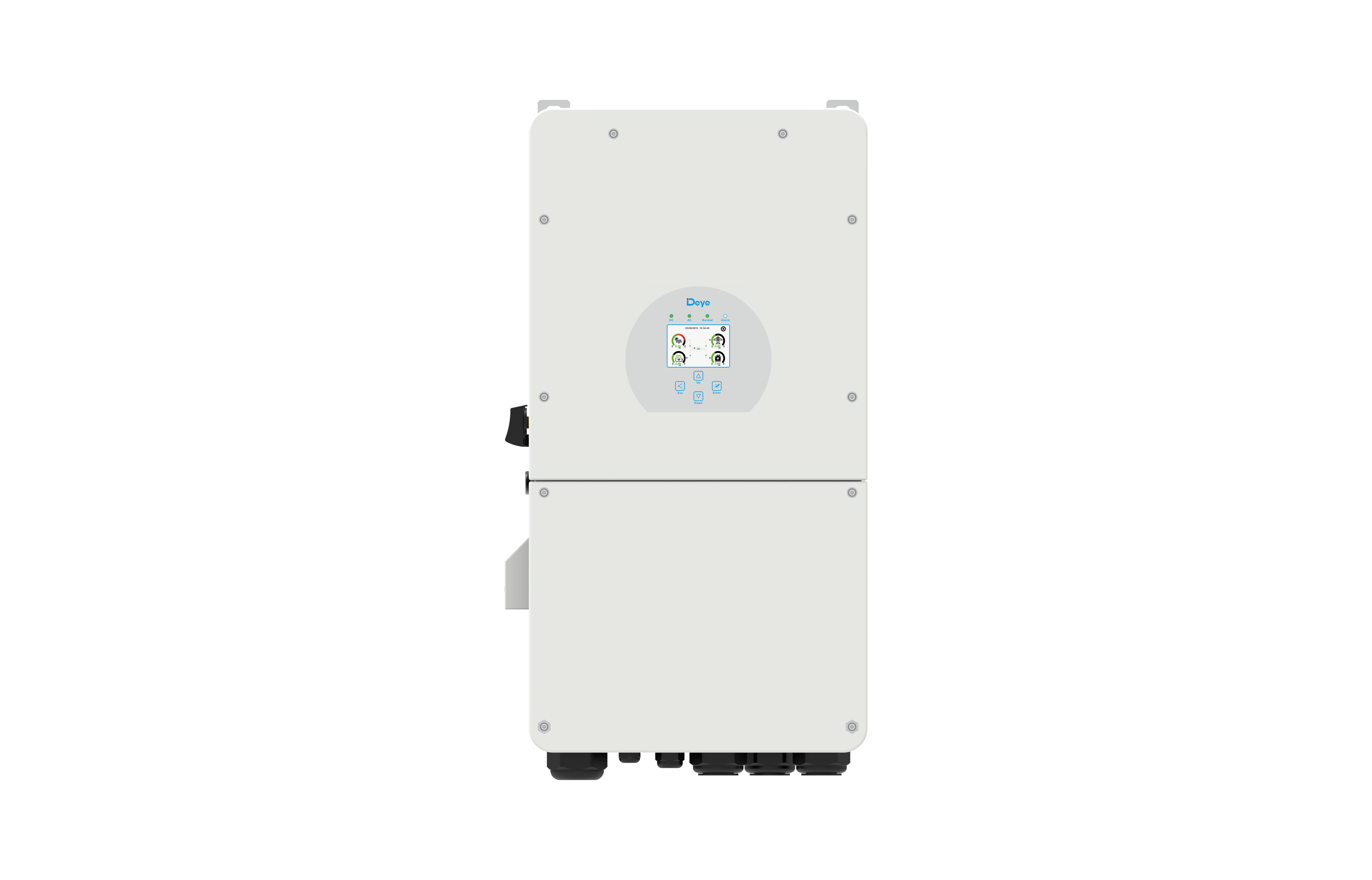

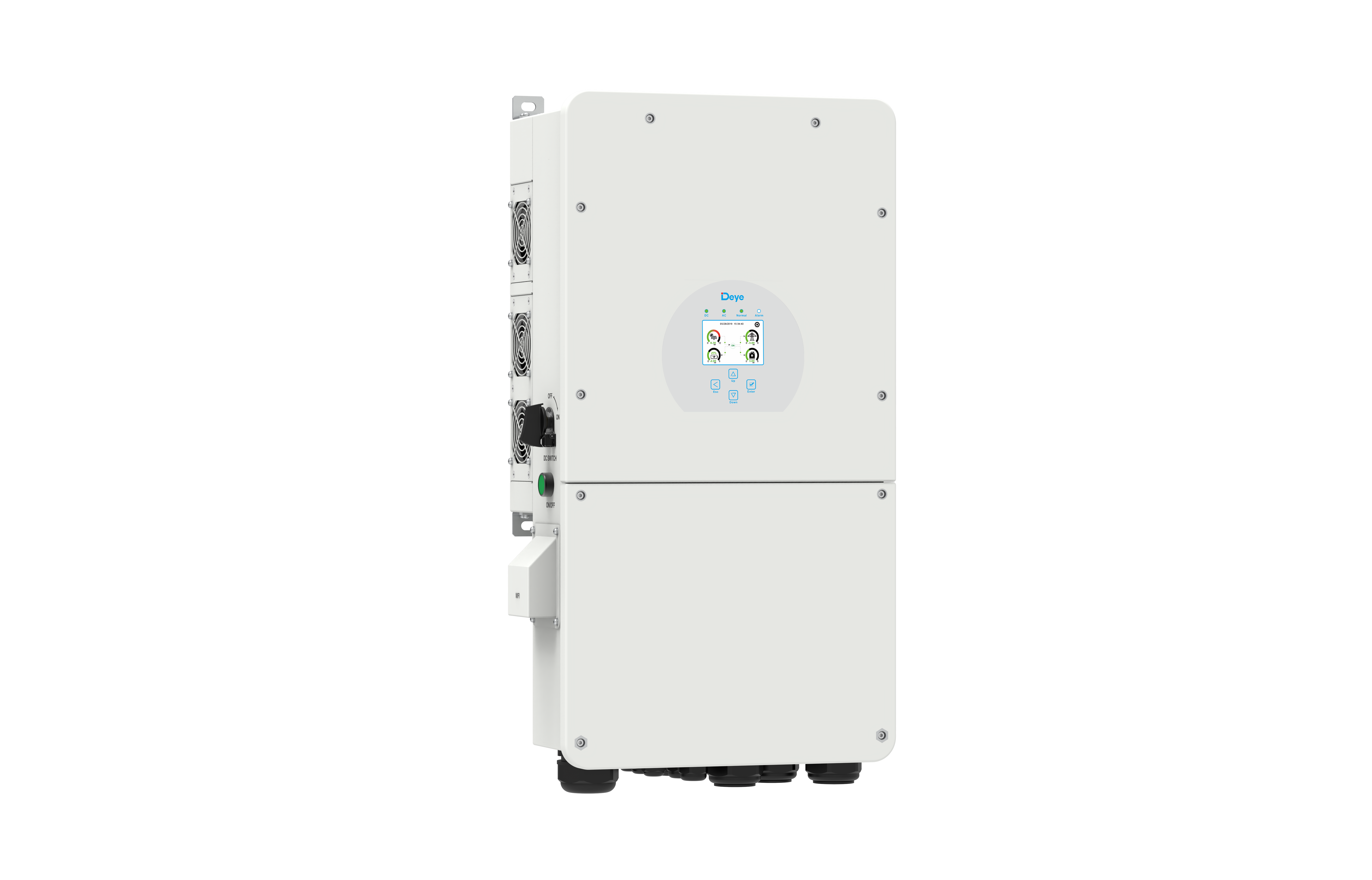

SUN-7.6K-SG02LP2-EU-AM2-P
|
SUN-8K-SG02LP2-EU-AM2-P |
SUN-10K-SG02LP2-EU-AM3-P |
SUN-12K-SG02LP2-EU-AM3-P |
| Battery Input Data |
|
| Battery Type |
Lead-acid or Lithium-ion |
| Battery Voltage Range(V) |
40-60 |
| Max.Charging Current(A) |
190 |
190 |
220 |
250 |
| Max.Discharging Current(A) |
190 |
190 |
220 |
250 |
| Charging Strategy for Li-ion Battery |
Self-adaption to BMS |
| Number of battery input |
1 |
| PV String Input Data |
|
| Max DC Input Power（W） |
11400 |
12000 |
15000 |
18000 |
| Max DC Input Voltage（V） |
500 |
| Start-up Voltage（V） |
125 |
| MPPT Voltage Range（V） |
150-425 |
| Rated DC Input Voltage(V) |
370 |
| Max. Operating PV Input Current (A) |
32+32 |
32+32+32 |
| Max. Input Short-Circuit Current (A) |
60+60
|
60+60+60 |
| No.of MPP Trackers/No.of String Per MPP Tracker |
2/2+2
|
3/2+2+2 |
| AC Input/Output Data |
|
| Rated AC Input/Output Active Power（W） |
7600 |
8000 |
10000 |
12000 |
| Max AC Input/Output Apparent Power （VA） |
8630 |
8000 |
10000 |
12000 |
| Peak Power (off-grid)（W） |
2 times of rated power, 10s |
| Rated AC Input/Output Current（A） |
31.7 |
33.4 |
41.7 |
50 |
| Max AC Input/Output Current（A） |
31.7
|
33.4 |
41.7 |
50 |
| Max. Continuous AC Passthrough (grid to load) (A) |
200 |
| Rated Input/Output Voltage/Range(V) |
120/240; 208 0.88Un＜U＜1.1Un |
| Grid Connection Form |
2L+N+PE |
| Rated Input/Output Grid Frequency/Range |
60/55-65 |
| Power Factor Adjustment Range |
0.8 leading to 0.8lagging |
| Total Current Harmonic Distortion THDi |
<3% (of nominal power) |
| DC Injection Current |
<0.5%ln |
| Efficiency |
|
| Max Efficiency |
97.6% |
| Euro Efficiency |
96.5% |
| MPPT Efficiency |
＞99% |
| Equipment Protection |
|
|
Integrated
|
DC Reverse Polarity Protection, AC Output Overcurrent Protection, Thermal Protection, AC Output Overvoltage
Protection, AC Output Short Circuit
Protection, DC Component Monitoring, Arc Fault Circuit Interrupter (optional), Anti-islanding Protection,
DC Switch, Insulation Impedance Detection,
Residual Current Detection
|
| Surge Protection Level |
TYPE II(DC), TYPE II(AC) |
| Interface |
|
| LCD/LED display |
LCD |
| Communication Interface |
WIFI,RS485 |
| General Data |
|
| Operating Temperature Range |
-40 to +60℃, >45℃ Derating |
| Permissible Ambient Humidity |
0-100% |
| Permissible Altitude |
2000m |
| Noise |
≤ 45 |
| Ingress Protection(IP) Rating |
TYPE 3R |
| Inverter Topology |
Non-Isolated |
| Over Voltage Category |
OVC II(DC),OVC III(AC) |
| Cabinet size（W*H*D）[mm] |
450×800×243（Excluding connectors and brackets）
|
| Weight[kg] |
40 |
| Warranty |
5 Years/10 Years
the Warranty Period Depends the Final Installation Site of Inverter, More Info Please Refer to Warranty Policy |
| Type Of Cooling |
Intelligent air cooling |
| Grid Regulation |
IEEE 1547.1, SRD V2.0 |
| Safety EMC/Standard |
FCC, UL 1741 |
