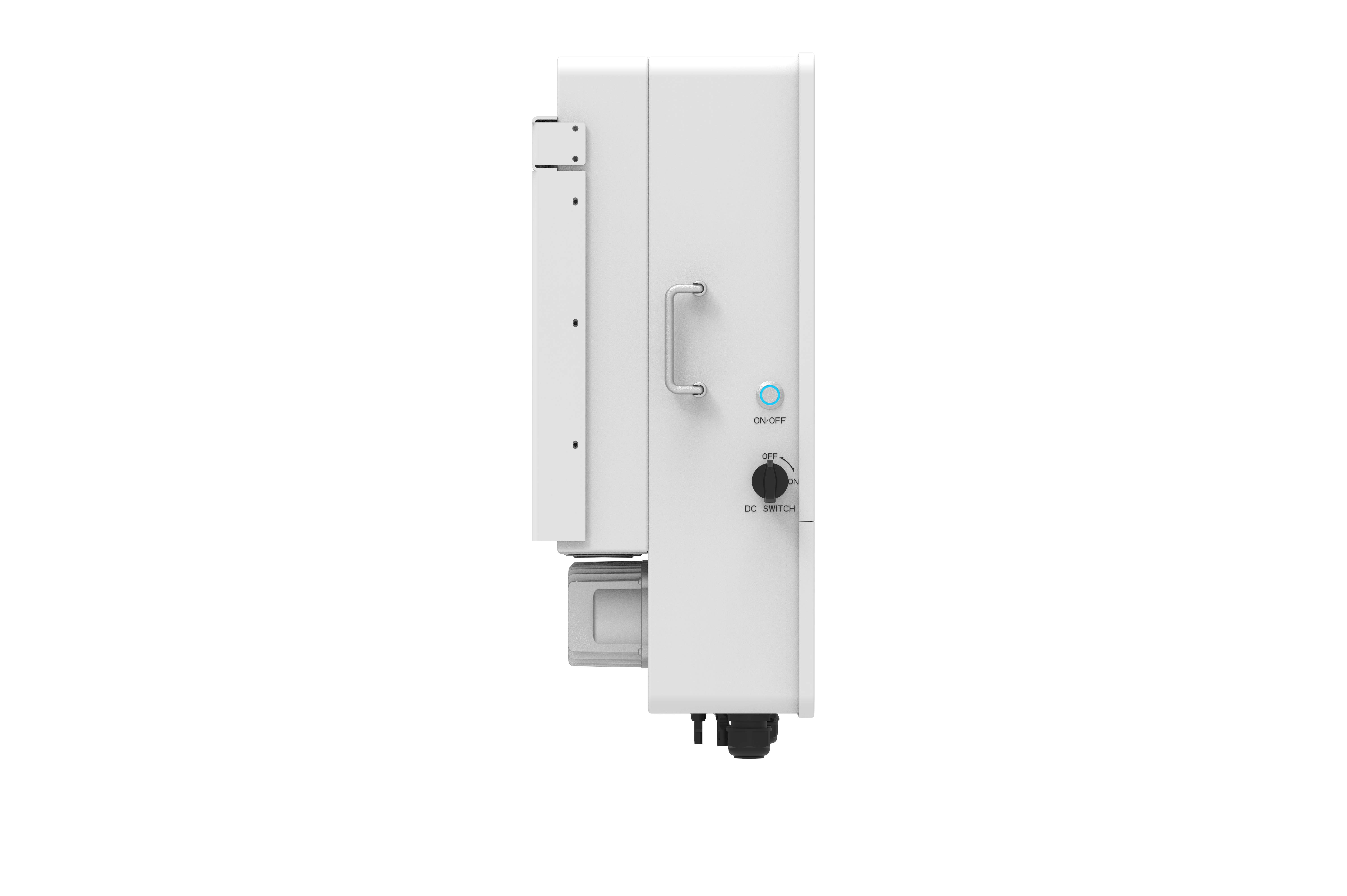

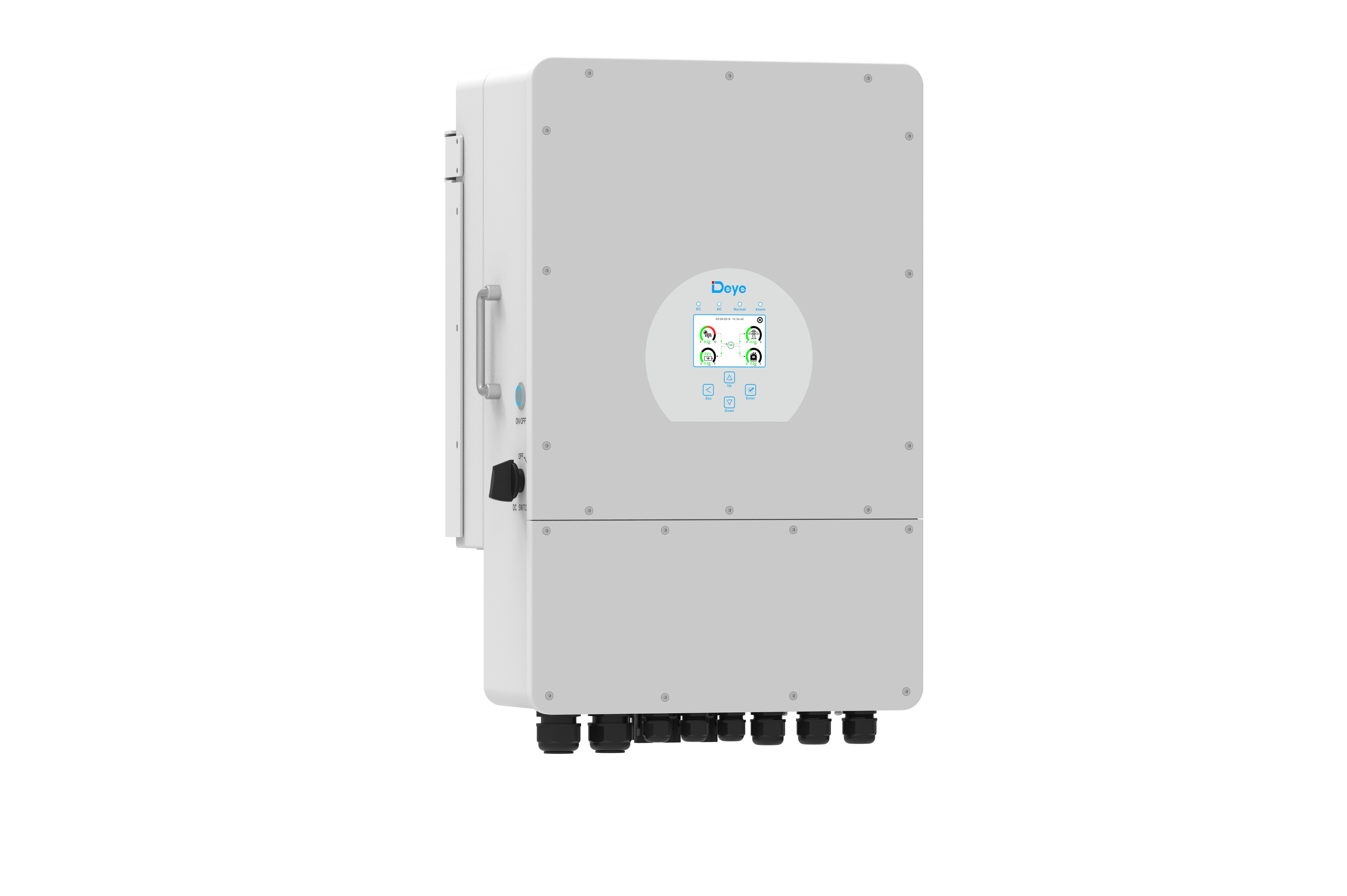

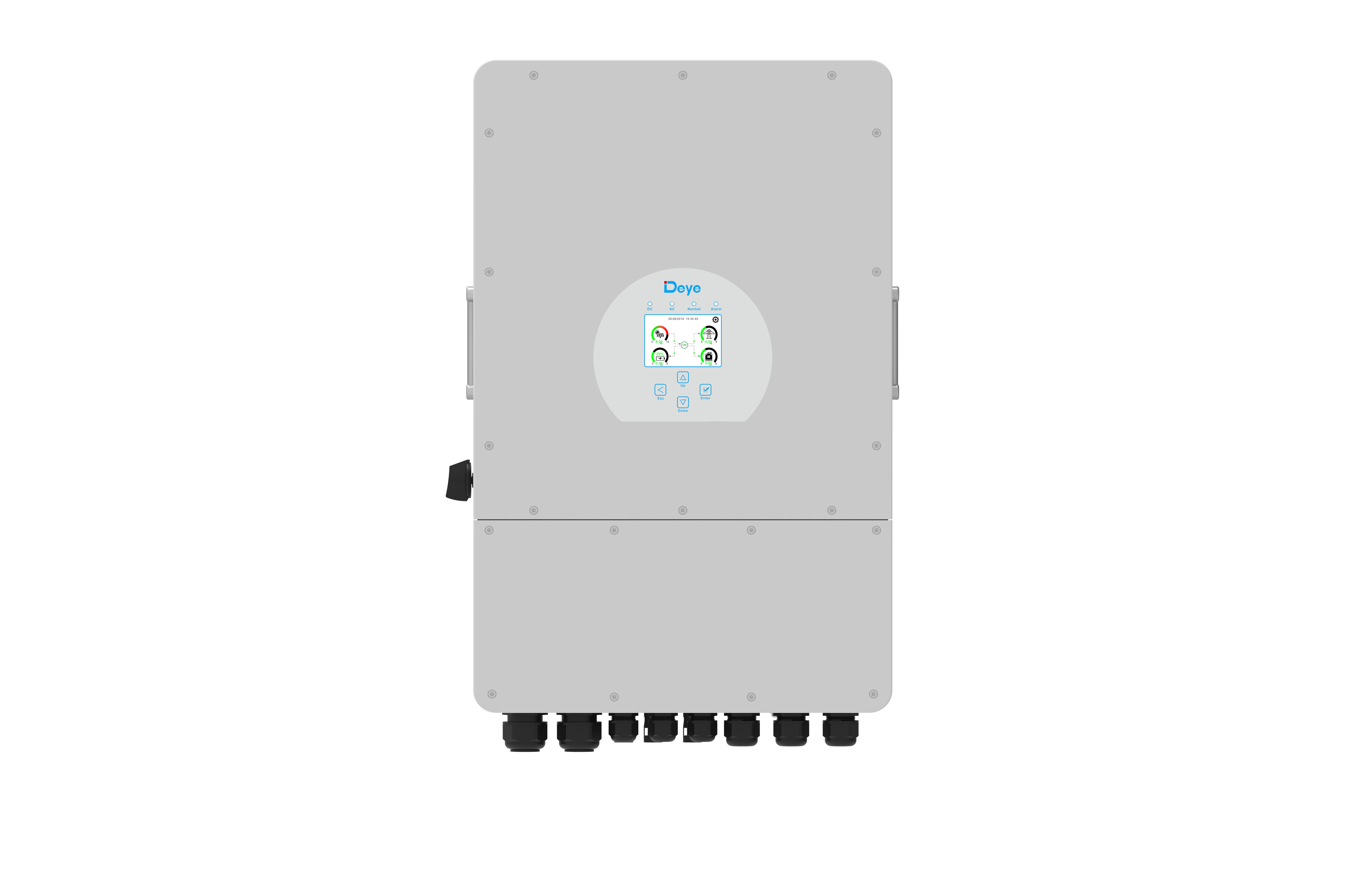

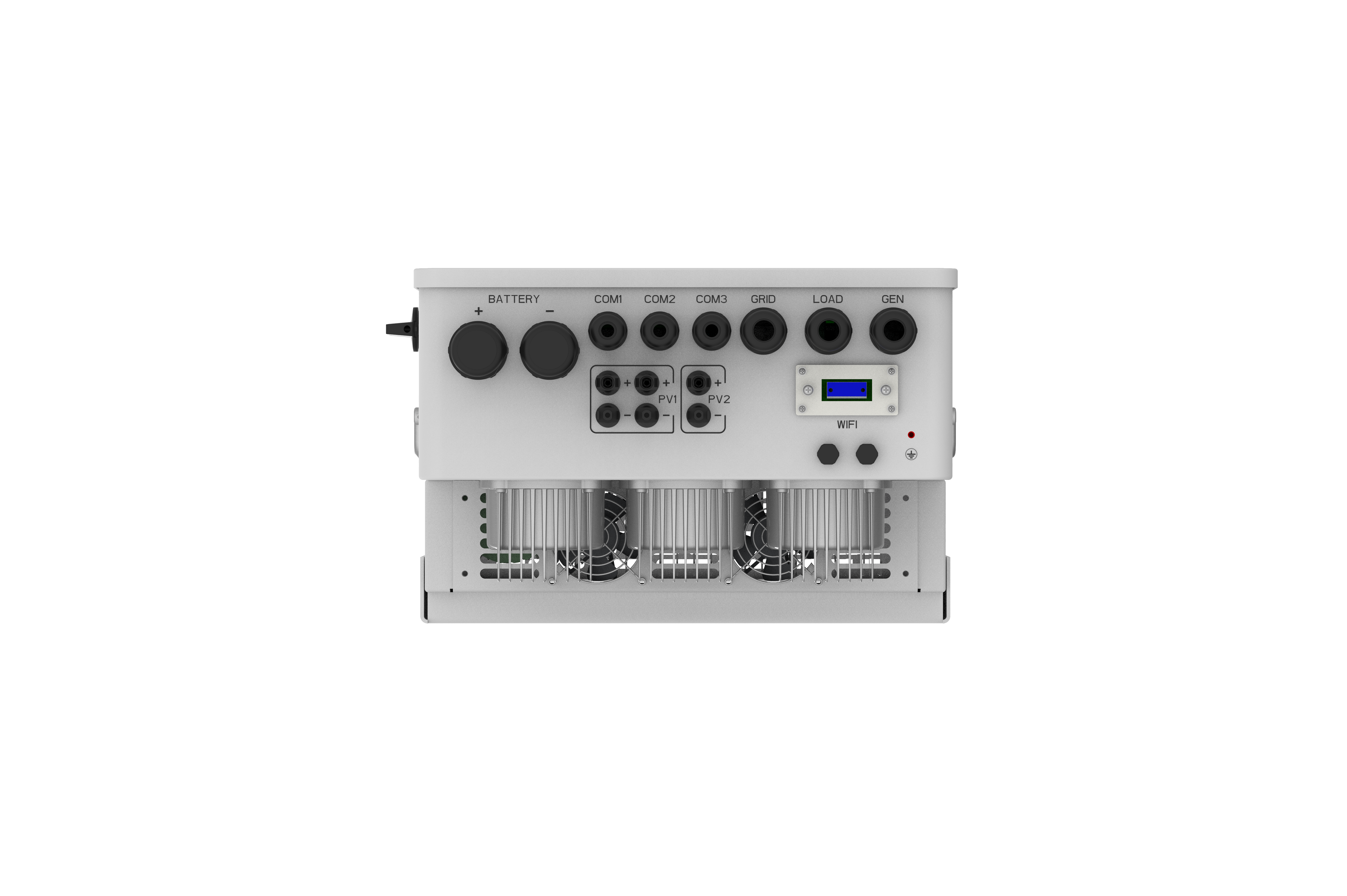

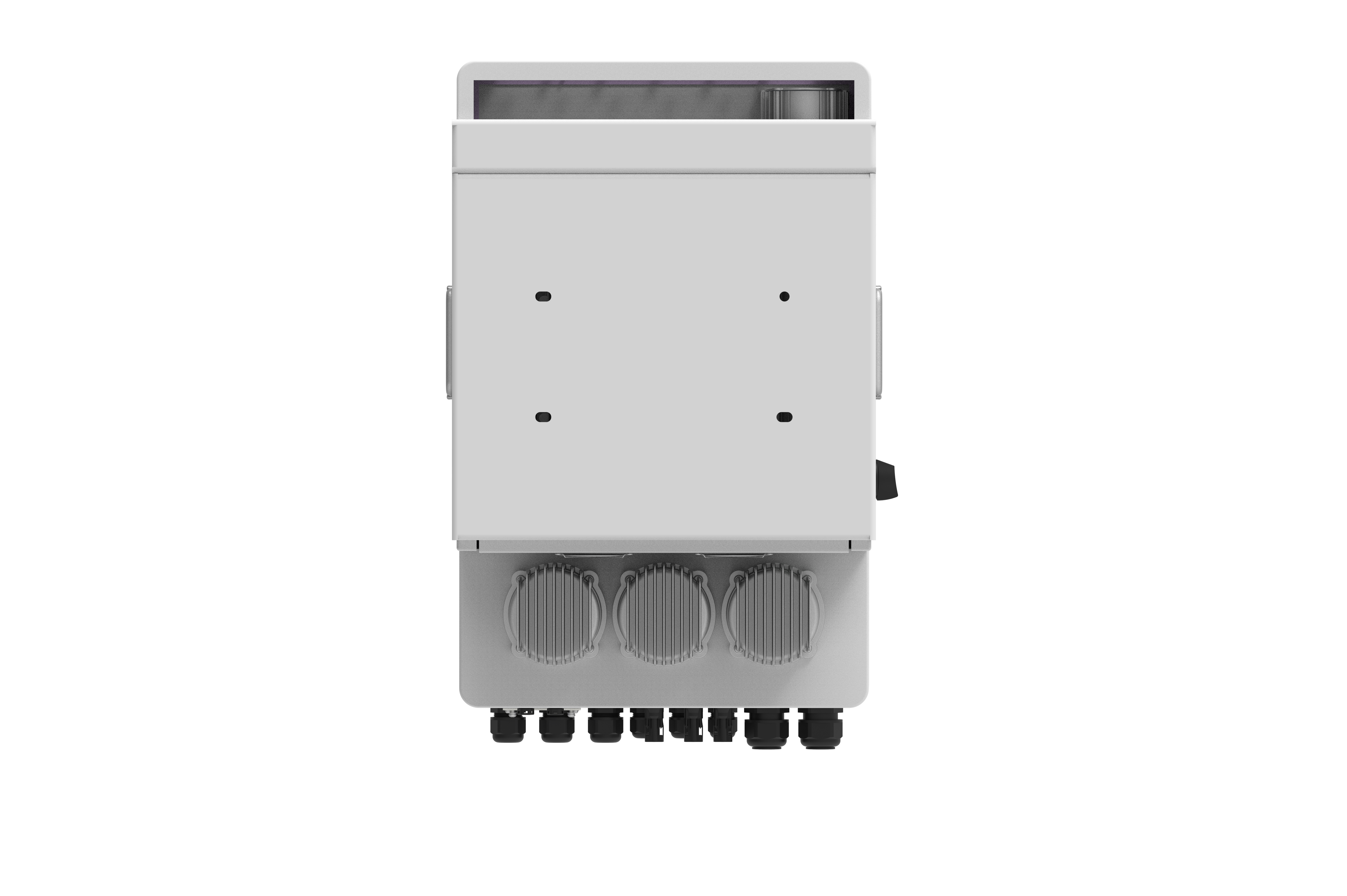

SUN-5/6/8/10/12K-SG04LP3-EU

Three Phase Hybrid Inverter | 5-12kW | 2 MPPT | LV Battery Supported

100% unbalanced output
AC couple to retrofifit existing solar system
Max. 10 pcs parallel for on-grid and off-grid

operation; Support multiple batteries parallel

Max. charging/discharging current of 240A
Support storing energy from diesel generator
48V low voltage battery, transformer isolation design
6 time periods for battery charging/discharging

DOWNLOAD AREA

>> Download Certificate <<

hybridinverter_eudeclaration-sun-5-12k-sg04lp3-eu+240628001

certificate_australia+asnzs4777.2-4

certificate_austria+torerzeuger+ove-richtlinier25

certificate_belgium+nbn-en50549-1+c10-11

certificate_czechrepublic+csn50549-1

certificate_emc+en62920-7

certificate_emc+eniec61000-7

certificate_en50549-10-2

certificate_france+en50549-10-2

certificate_france+xpc15+vde0126+vfr2019_fra

certificate_germany+vde4105-1

certificate_germany+vde4105+nsprotection-1

certificate_greece+en50549-10

certificate_iec61727+iec62116

certificate_ireland+i.s.en50549-1

certificate_italy+cei0-21

certificate_lvd+en62109-6

certificate_netherlands+nen-en50549-1-1

certificate_norway+en50549-1

certificate_poland+pn-en50549-1-3

certificate_southafrica+nrs097-5

certificate_spain+nts-5

certificate_spain+rd647+rd413+rd1699

certificate_spain+une217001-4

certificate_spain+une217002-5

certificate_tuvmark+en62109-6

Technical Specifications

SUN-(5-12)K-SG04LP3-EU
Feedback

Model	SUN-5K-SG04LP3-EU	SUN-6K-SG04LP3-EU	SUN-8K-SG04LP3-EU	SUN-10K-SG04LP3-EU	SUN-12K-SG04LP3-EU
Battery Input Data
Battery Type	Lead-acid or Lithium-ion
Battery Voltage Range(V)	40-60
Max.Charging Current(A)	120	150	190	210	240
Max.Discharging Current(A)	120	150	190	210	240
Charging Strategy for Li-ion Battery	Self-adaption to BMS
Number of battery input	1
PV String Input Data
Max. PV Access Power (W)	10000	12000	16000	20000	24000
Max PV Input Power（W）	7500	9000	12000	15000	18000
MaxPV Input Voltage（V）	800
Start-up Voltage（V）	160
MPPT Voltage Range（V）	200-650
Rated PV Input Voltage(V)	550
Max. Operating PV Input Current (A)	13+13			26+13
Max. Input Short-Circuit Current (A)	17+17			34+17
No.of MPP Trackers/No.of String Per MPP Tracker	2/1+1			2/2+1
AC Input/Output Data
Rated AC Input/Output Active Power（W）	5000	6000	8000	10000	12000
Max AC Input/Output Apparent Power （VA）	5500	6600	8800	11000	13200
Peak Power (off-grid)（W）	2 times of rated power, 10s
Rated AC Input/Output Current（A）	7.6/7.2	9.1/8.7	12.1/11.6	15.2/14.5	18.2/17.4
Max AC Input/Output Current（A）	8.4/8	10/9.6	13.4/12.8	16.7/15.9	20/19.1
Max Continuous AC Passthrough (grid to load)（A）	45
Rated Input/Output Voltage/Range(V)	220/380V，230/400V 0.85Un-1.1Un
Grid Connection Form	3L+N+PE
Rated Input/Output Grid Frequency/Range	50/45-55, 60/55-65
Power Factor Adjustment Range	0.8 leading to 0.8 lagging
Total Current Harmonic Distortion THDi	<3% (of nominal power)
DC Injection Current	<0.5%ln
Efficiency
Max Efficiency	97.6%
Euro Efficiency	97.0%
MPPT Efficiency	＞99%
Equipment Protection
Integrated	DC Reverse Polarity Protection, AC Output Overcurrent Protection, Thermal Protection, AC Output Overvoltage Protection, AC Output Short Circuit Protection, DC Component Monitoring, Arc Fault Circuit Interrupter (optional), Anti-islanding Protection, DC Switch, Insulation Impedance Detection, Residual Current Detection
Surge Protection Level	TYPE II(DC), TYPE II(AC)
Interface
Communication Interface	RS485/RS232/CAN
Monitor Mode	GPRS/WIFI/Bluetooth/4G/LAN(optional)
General Data
Operating Temperature Range	-40 to +60℃, >45℃ Derating
Permissible Ambient Humidity	0-100%
Permissible Altitude	2000m
Noise	≤ 55 dB(A)
Ingress Protection(IP) Rating	IP 65
Inverter Topology	Non-Isolated
Over Voltage Category	OVC II(DC),OVC III(AC)
Cabinet size（WHD）[mm]	422×658×254（Excluding connectors and brackets）
Weight[kg]	38
Warranty	5 Years/10 Years the Warranty Period Depends the Final Installation Site of Inverter, More Info Please Refer to Warranty Policy
Type Of Cooling	Intelligent air cooling
Grid Regulation	IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G98,G99, VDE-AR-N 4105
Safety EMC/Standard	IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
