| Model |

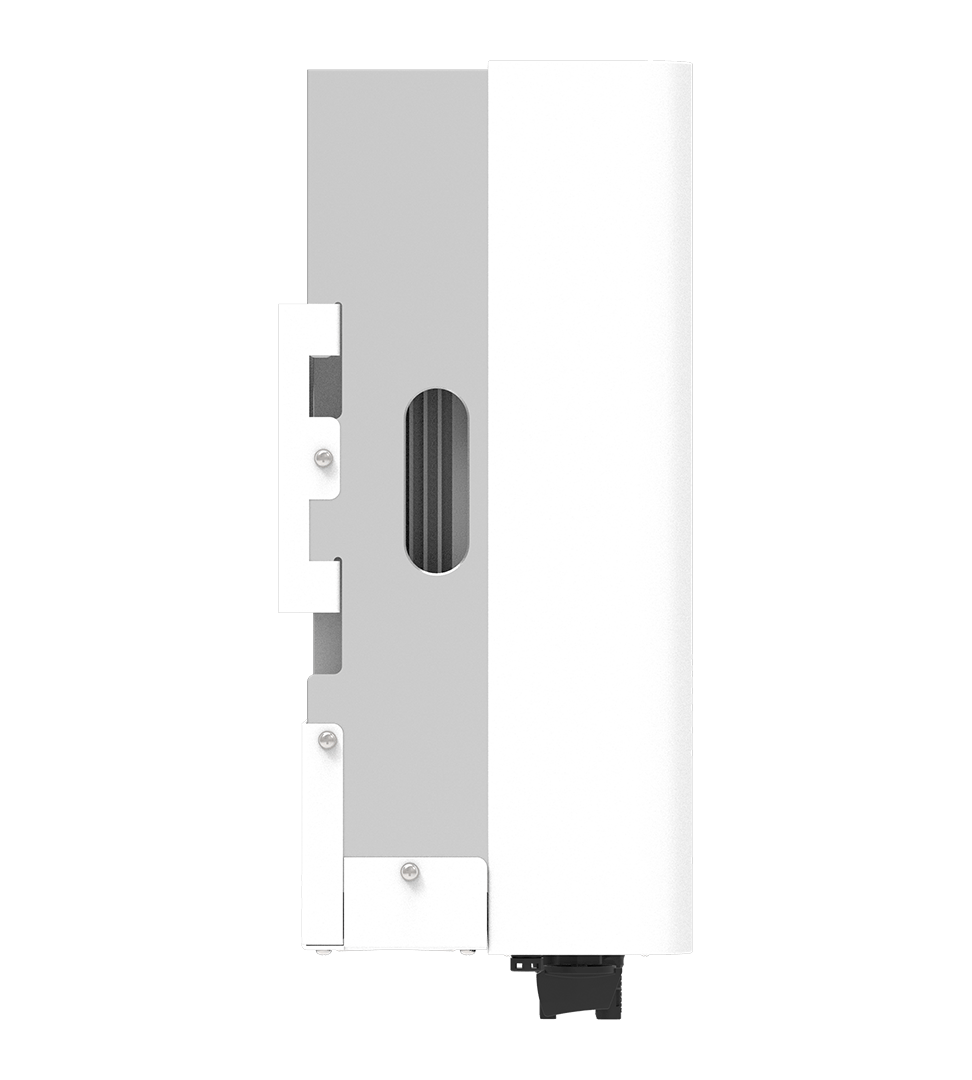

SUN-15K-G05 |
| PV String Input Date |
|
| Max. PV Input Power(kW) |
19.5 |
| Max. PV Input Voltage(V) |
1000 |
| Start-up Voltage(V) |
250 |
| MPPT voltage range(V) |
250-850 |
| Rated PV Input voltage(V) |
600 |
| Max. Input Short Circuit Current (A) |
19.5+39 |
| Max. Operating PV Input Current(A) |
13+26 |
| No. of MPP Trackers/No. of Strings per MPP Tracker |
2/1+2 |
|
AC Output Side
|
|
| Rated AC Output Active Power(kW) |
15 |
| Max. AC Output Apparent Power(kVA) |
16.5 |
| Rated AC output current (A) |
22.7/21.7 |
| Max. AC Output Current(A) |
25/23.9 |
| Rated output voltage/range (V) |
220/380V, 230/400V 0.85Un-1.1Un |
| Grid Connection Form |
3L/N/PE |
| Rated Output Grid Frequency/range(Hz) |
50/45-55, 60/55-65 |
| Power Factor Adjustment Range |
0.8 leading to 0.8lagging |
| Total Current Harmonic Distortion THDi |
<3% |
| DC Injection Current |
<0.5%ln |
| Efficiency |
|
| Max. Efficiency |
98.5% |
| Euro Efficiency |
98.0% |
| MPPT Efficiency |
＞99% |
| Equipment Protection |
|
| DC Polarity Reverse Connection Protection |
yes |
| AC Output Overcurrent Protection |
yes |
| AC Output Overvoltage Protection |
yes |
| AC Output Short Circuit Protection |
yes |
| Thermal Protection |
yes |
| DC Terminal Insulation Impedance Monitoring |
yes |
| DC Component Monitoring |
yes |
| Ground Fault Current Monitoring |
yes |
| Power Network Monitoring |
yes |
|
Arc Fault Circuit Interrupter (AFCI)
|
Optional
|
| Island Protection Monitoring |
yes |
| Earth Fault Detection |
yes |
| Overvoltage Load Drop Protection |
yes |
| Residual Current (RCD) Detection |
yes |
| Surge Protection Level |
TYPE II(DC),TYPE II(AC) |
| Interface |
|
| Communication Interface |
RS485/RS232 |
|
Monitor Mode
|
GPRS/WIFI/Bluetooth/4G/LAN(optional) |
| General Data |
|
| Operating Temperature Range (°C) |
-25 to +60℃, >45℃ Derating |
| Permissible Ambient Humidity |
0~100% |
| Permissible Altitude (m) |
4000m |
| Noise (dB) |
≤40 |
| Ingress Protection(IP) Rating |
IP 65 |
| Inverter Topology |
Non-Isolated |
| Over Voltage Category |
OVC II(DC),OVC III(AC) |
| Cabinet Size (WxHxD mm) |
332mm*472mm*203mm（Excluding connectors and brackets） |
| Weight [kg] |
15 |
| Warranty [year] |
5 years |
| Type Of Cooling |
Intelligent Air Cooling |
| Grid Regulation |
IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, G98, G99, VDE 4105 |
| Safety EMC/Standard |
IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 |
