| Model |
SUN-3K-G06P3-EU-BM2-P1 |
SUN-4K-G06P3-EU-BM2-P1 |
SUN-5K-G06P3-EU-BM2-P1 |
SUN-6K-G06P3-EU-BM2-P1 |
SUN-7K-G06P3-EU-BM2-P1 |
SUN-8K-G06P3-EU-BM2-P1 |
SUN-9K-G06P3-EU-BM2-P1 |
SUN-10K-G06P3-EU-BM2-P1 |
SUN-12K-G06P3-EU-BM2-P1 |
SUN-15K-G06P3-EU-BM2-P1 |
| PV String Input Data |
| Max. PV Input Power (kW) |
4.5 |
6 |
7.5 |
9 |
10.5 |
12 |
13.5 |
15 |
18 |
22.5 |
| Max. PV Input Voltage (V) |
1100 |
| Start-up Voltage (V) |
140 |
| MPPT Voltage Range (V) |
120-1000 |
| Rated PV Input Voltage (V) |
600 |
| Max. Operating PV Input Current (A) |
20+20 |
20+26 |
| Max. Input Short Circuit Current (A) |
30+30 |
30+39 |
No. of MPP Trackers/
No. of StringsperMPP Tracker |
2/1+1 |
2/1+2 |
| AC Output Side |
| Rated AC Output Active Power (kW) |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
10 |
12 |
15 |
| Max.AC Output Apparent Power (kVA) |
3.3 |
4.4 |
5.5 |
6.6 |
7.7 |
8.8 |
9.9 |
11 |
13.2 |
16.5 |
| Rated AC Output Current (A) |
4.6/4.4 |
6.1/5.8 |
7.6/7.3 |
9.1/8.7 |
10.7/10.2 |
12.2/11.6 |
13.7/13.1 |
15.2/14.5 |
18.2/17.4 |
22.8/21.8 |
| Max. AC Output Current (A) |
5/4.8 |
6.7/6.4 |
8.4/8 |
10/9.6 |
11.7/11.2 |
13.4/12.8 |
15/14.4 |
16.7/16 |
20/19.2 |
25/24 |
| Rated Output Voltage/Range (V) |
220/380V, 230/400V 0.85Un-1.1Un |
| Grid Connection Form |
3L/N/PE |
| Rated Output Grid Frequency/Range(Hz) |
50/45-55, 60/55-65 |
| Power Factor Adjustment Range |
0.8 leading to 0.8 lagging |
| Total Current Harmonic Distortion THDi |
<3% |
| DC Injection Current |
<0.5%ln |
| Efficiency |
|
| Max. Efficiency |
98.1% |
98.2% |
98.3% |
98.5% |
| Euro Efficiency |
97.5% |
97.6% |
97.8% |
98% |
| MPPTEfficiency |
>99% |
| Equipment Protection |
|
| DC Reverse Polarity Protection |
Yes |
| AC Output Overcurrent Protection |
Yes |
| AC Output Overvoltage Protection |
Yes |
| AC Output Short Circuit Protection |
Yes |
| Thermal Protection |
Yes |
| Insulation Impedance Detection |
Yes |
| DC Component Monitoring |
Yes |
|
Arc Fault Circuit Interrupter (AFCI)
|
Optional
|
|
Anti-islanding Protection
|
Yes |
| Residual Current Detection |
Yes |
| Surge Protection Level |
TYPE II(DC),TYPE II(AC) |
|

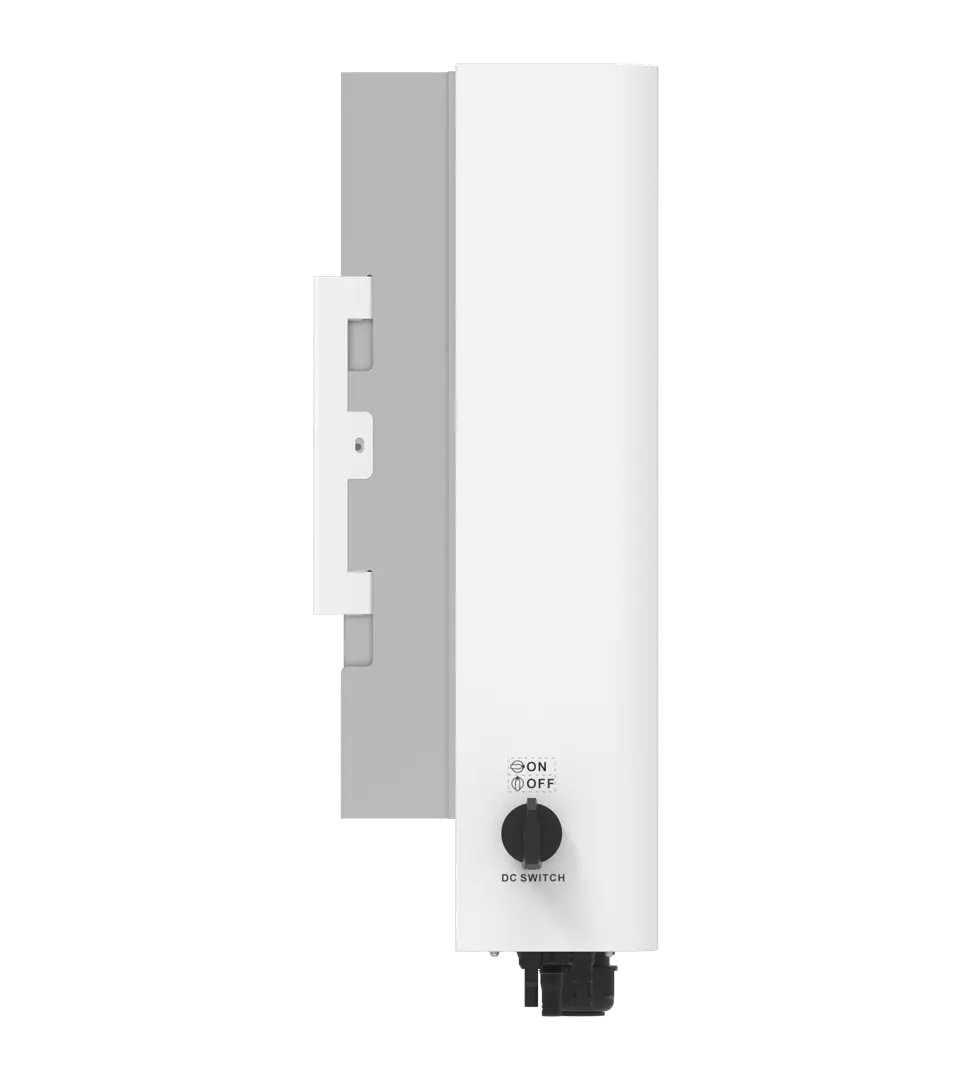

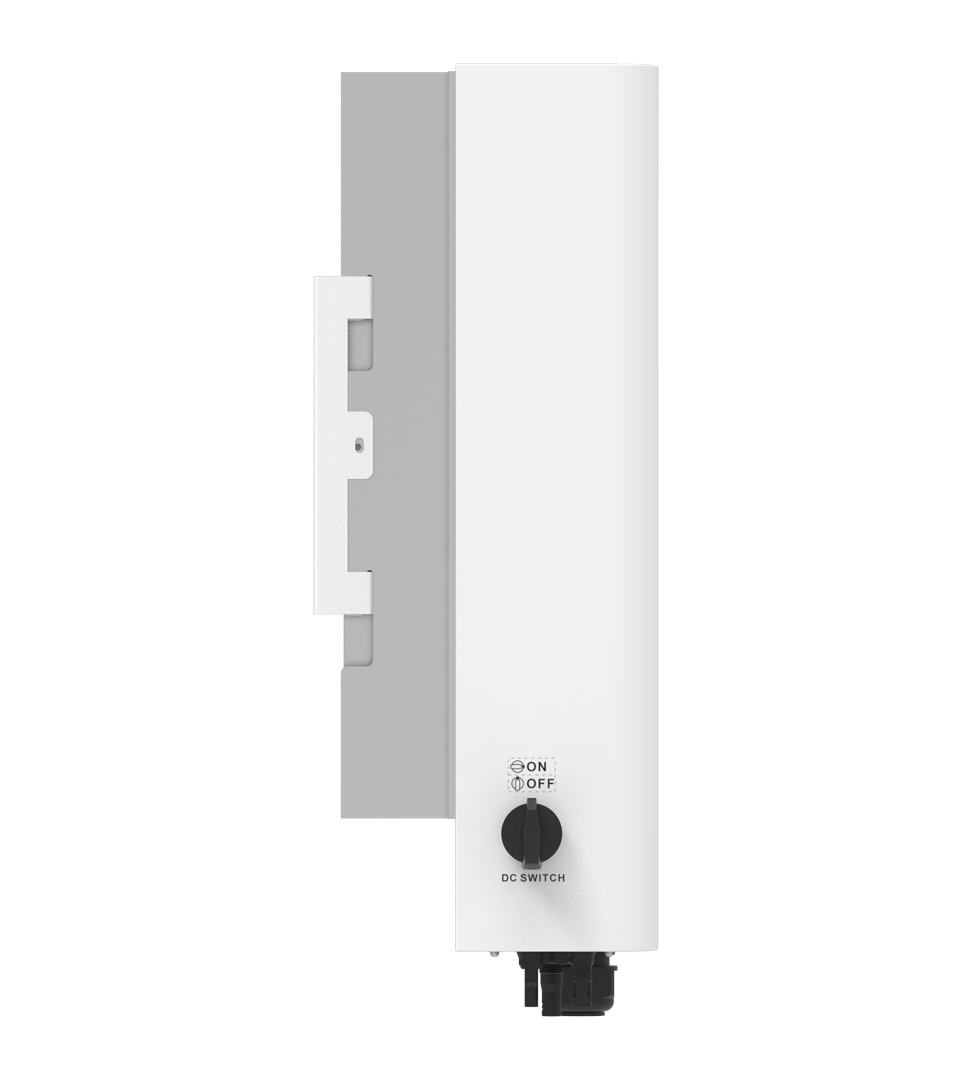

DC Switch
|
Yes |
| Interface |
| Communication Interface |
RS485/RS232 |
| Monitor Mode |
GPRS/WIFI/Bluetooth/4G/LAN(optional) |
| General Data |
| Operating Temperature Range (°C) |
-25 to +60℃, >45℃ Derating |
| Permissible Ambient Humidity |
0-100% |
| Permissible Altitude (m) |
4000m |
| Noise (dB) |
<45 |
| Ingress Protection(IP) Rating |
IP 65 |
| Inverter Topology |
Non-Isolated |
| Over Voltage Category |
OVC II(DC), OVC III(AC) |
| Cabinet Size (WxHxD mm) |
283×525×178 (Excluding Connectors and Brackets) |
283×525×188 |
| Weight (kg) |
11.5 |
12 |
| Warranty |
5 Years |
| Type of Cooling |
Natural Cooling |
| Grid Regulation |
IEC 61727, IEC 62116,CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002,
OVE-Richtlinie R25, G98,G99,VDE-AR-N 4105 |
| Safety EMC/Standard |
IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 |
