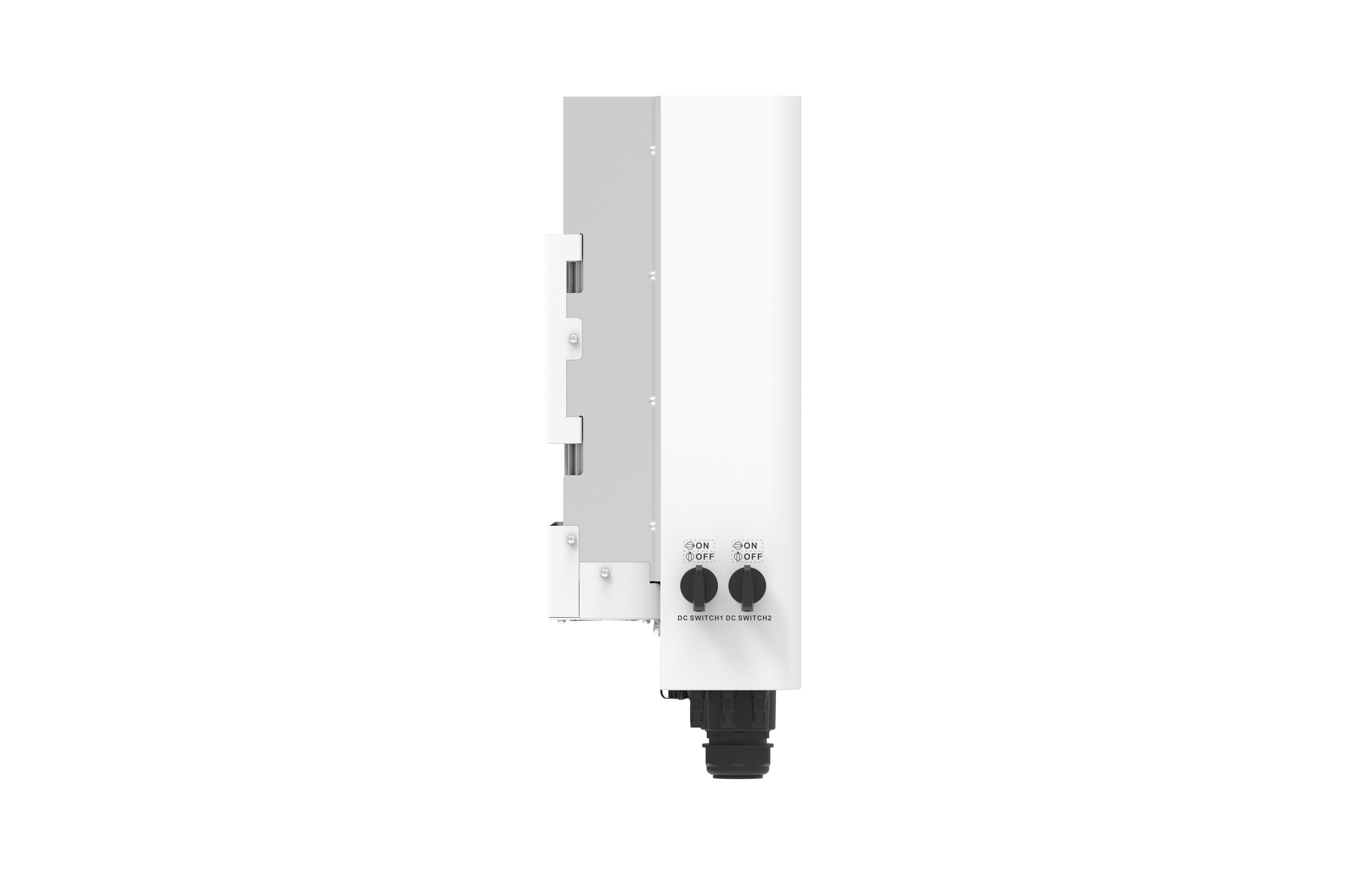

| Model |
SUN-40K-G04 |
SUN-45K-G04 |
SUN-50K-G04 |
|
|
|
|
|
|
|
| PV String Input Date |
|
|
|
|
|
|
|
|
| Max. PV Input Power(kW) |
52 |
58.5 |
65 |
|
|
|
|
|
|
|
| Max. PV Input Voltage(V) |
1100 |
|
|
|
|
|
|
|
| Start-up Voltage(V) |
250 |
|
|
|
|
|
|
|
| MPPT voltage range(V) |
200-1000 |
|
|
|
|
|
|
|
| Rated PV Input voltage(V) |
600 |
|
|
|
|
|
|
|
| Max. Input Short Circuit Current (A) |
60+60+60 |
60+60+60+60 |
|
|
|
|
|
|
|
| Max. Operating PV Input Current(A) |
40+40+40 |
40+40+40+40 |
|
|
|
|
|
|
|
| No. of MPPT Trackers/No. of Strings per MPPT Trackers |
3/3+3+3 |
4/3+3+3+3 |
|
|
|
|
|
|
|
|
AC Output Side
|
|
|
|
|
|
|
|
|
| Rated AC Output Active Power(kW) |
40 |
45 |
50 |
|
|
|
|
|
|
|
| Max. AC Output Apparent Power(kVA) |
44 |
49.5 |
55 |
|
|
|
|
|
|
|
| Rated AC output current (A) |
60.6/58 |
68.2/65.2 |
75.8/72.5 |
|
|
|
|
|
|
|
| Max. AC IOutput Current(A) |
66.7/63.8 |
75/71.7 |
83.3/79.7 |
|
|
|
|
|
|
|
| Rated output voltage/range (V) |
220/380V, 230/400V 0.85Un-1.1Un |
|
|
|
|
|
|
|
| Grid Connection Form |
3L/N/PE |
|
|
|
|
|
|
|
| Rated Output Grid Frequency/range(Hz) |
50/45-55, 60/55-65 |
|
|
|
|
|
|
|
| Power Factor Adjustment Range |
0.8 leading to 0.8 lagging |
|
|
|
|
|
|
|
| Total Current Harmonic Distortion THDi |
<3% |
|
|
|
|
|
|
|
| DC Injection Current |
<0.5%ln |
|
|
|
|
|
|
|
| Efficiency |
|
|
|
|
|
|
|
|
| Max. Efficiency |
98.7% |
|
|
|
|
|
|
|
| Euro Efficiency |
98.1% |
|
|
|
|
|
|
|
| MPPT Efficiency |
＞99% |
|
|
|
|
|
|
|
| Equipment Protection |
|
|
|
|
|
|
|
|
| DC Reverse Polarity Protection |
Yes |
| AC Output Overcurrent Protection |
Yes |
| AC Output Overvoltage Protection |
Yes |
| AC Output Short Circuit Protection |
Yes |
| Thermal Protection |
Yes |
| Insulation Impedance Detection |
Yes |
| DC Component Monitoring |
Yes |
|
Arc Fault Circuit Interrupter (AFCI)
|
Optional
|
|
Anti-islanding Protection
|
Yes |
| Residual Current Detection |
Yes |
| Surge Protection Level |
TYPE II(DC),TYPE II(AC) |
|
DC Switch
|
Yes |
| Interface |
|
|
|
|
|
|
|
|
| Communication Interface |
RS485/RS232 |
|
|
|
|
|
|
|
|
Monitor Mode
|
GPRS/WIFI/Bluetooth/4G/LAN(optional) |
|
|
|
|
|
|
|
| General Data |
|
|
|
|
|
|
|
|
| Operating Temperature Range (°C) |
-25 to +60℃, >45℃ Derating |
|
|
|
|
|
|
|
| Permissible Ambient Humidity |
0~100% |
|
|
|
|
|
|
|
| Permissible Altitude (m) |
4000m |
|
|
|
|
|
|
|
| Noise (dB) |
<65 |
|
|
|
|
|
|
|
| Ingress Protection(IP) Rating |
IP 65 |
|
|
|
|
|
|
|
| Inverter Topology |
Non-Isolated |
|
|
|
|
|
|
|
| Over Voltage Category |
OVC II(DC),OVC III(AC) |
|
|
|
|
|
|
|
| Cabinet Size (WxHxD mm) |
434×570×243 (Excluding Connectors and Brackets) |
|
|
|
|
|
|
|
| Weight [kg] |
39 |
|
|
|
|
|
|
|
| Warranty [year] |
5 Years |
|
|
|
|
|
|
|
| Type Of Cooling |
Intelligent Air Cooling |
|
|
|
|
|
|
|
| Grid Regulation |
IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002,
OVE-Richtlinie R25, G99, VDE-AR-N 4105 |
|
|
|
|
|
|
|
| Safety EMC/Standard |
IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 |
|
|
|
|
|
|
|
